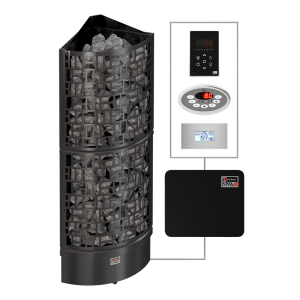

SAWO30 Corner Black NS

Power rating from 4,5 to 12kW

» Power range 4,5 – 12,0kW

» Control: Separate
» Sauna Experience: Mild smooth heat, Humid

» Black steel casing

» Easier loading of stones with separating middle part.
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat
» Optional Heater guard and integration collar

Choose SAWO30 Corner to sauna layouts with tight on space.

The large amount of stones in the tall sleek body enables rich, steam-infused atmosphere with an ideal combination of steam and humidity.

INQUIRE

Specifications

Technical Data

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG) w/o Stone Spacer	Stones (KG) with Stone Spacer	Minimum Safety Distances A \| B
SW3-45NS-CNR-BL-P-C	4,5	3 – 6	300 – 300 – 1395	70	45	100	1900
SW3-60NS-190CNR-BL-P-C	6,0	5 – 8	300 – 300 1395	70	45	100	1900
SW6-90NS-CNR-BL-P-C	9,0	8 – 15	410 *410 1415	160	100	100	1900
SW6-120NS-CNR-BL-P	12,0	11 – 18	410 *410 1415	160	100	100	1900
